Description

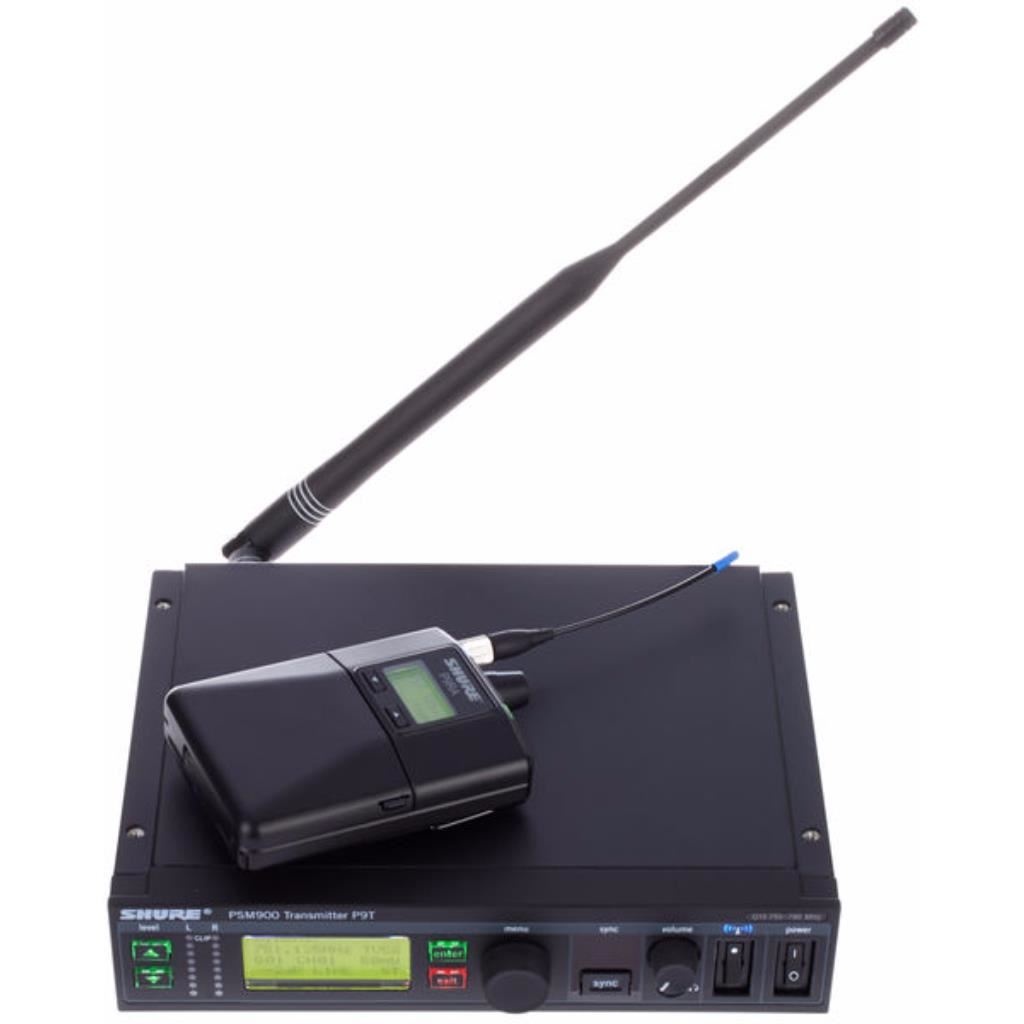

The PSM 900 In-Ear Personal Monitoring System from Shure offers a clear and accurate audio quality and robust RF performance. Innovative features allowing for ease of use and quick setup make it the ideal solution for the most demanding professional applications. All new, patent-pending CueMode allows the sound engineer to monitor different stage mixes with the touch of a button. Precision front-end RF filtering significantly reduces dropouts from RF interference.

Main Features:

• UEMODE – INSTANTLY LISTEN TO ANY STAGE MIX
  This feature allows for auditioning of up to 20 different mixes on a single bodypack at the touch of a button. Simply hear what the performer hears, without the need for any additional equipment.
• SCAN AND SYNC – FIND CHANNELS EASILY AND IMMEDIATELY
  Scan the RF environment and assign an identified group and channel to a system over wireless IR link within seconds.
• RF MUTE SWITCH – THE "DO NOT DISTURB" RF BUTTON
  Ideal for festivals and multi-venue events, the front-panel RF mute switch on the P9T transmitter enables or disables RF transmission, allowing setup operation without disrupting the RF environment.

Specifications:

• Environment: Medium to large stages
• RF Output Power: Switchable: 10, 50, 100 mW (+20 dBm) (regionally dependent)
• Operating Distance: Up to 90
• Frequency Response: 35 Hz - 15 kHz
• Harmonic distortion: <0,8%
• Signal-to-noise-ratio: 90 dB (A) typical
• Compatible Systems per band (up to): 20
• Transmitter Inputs: 2x XLR/6,3 mm combo, mic/line level
• Transmitter Outputs: 2x 6,3 mm outputs
• Wired Bodypack Option: No
• Personal Mix Control: On transmitter
• Remoteable Transmitter: Yes

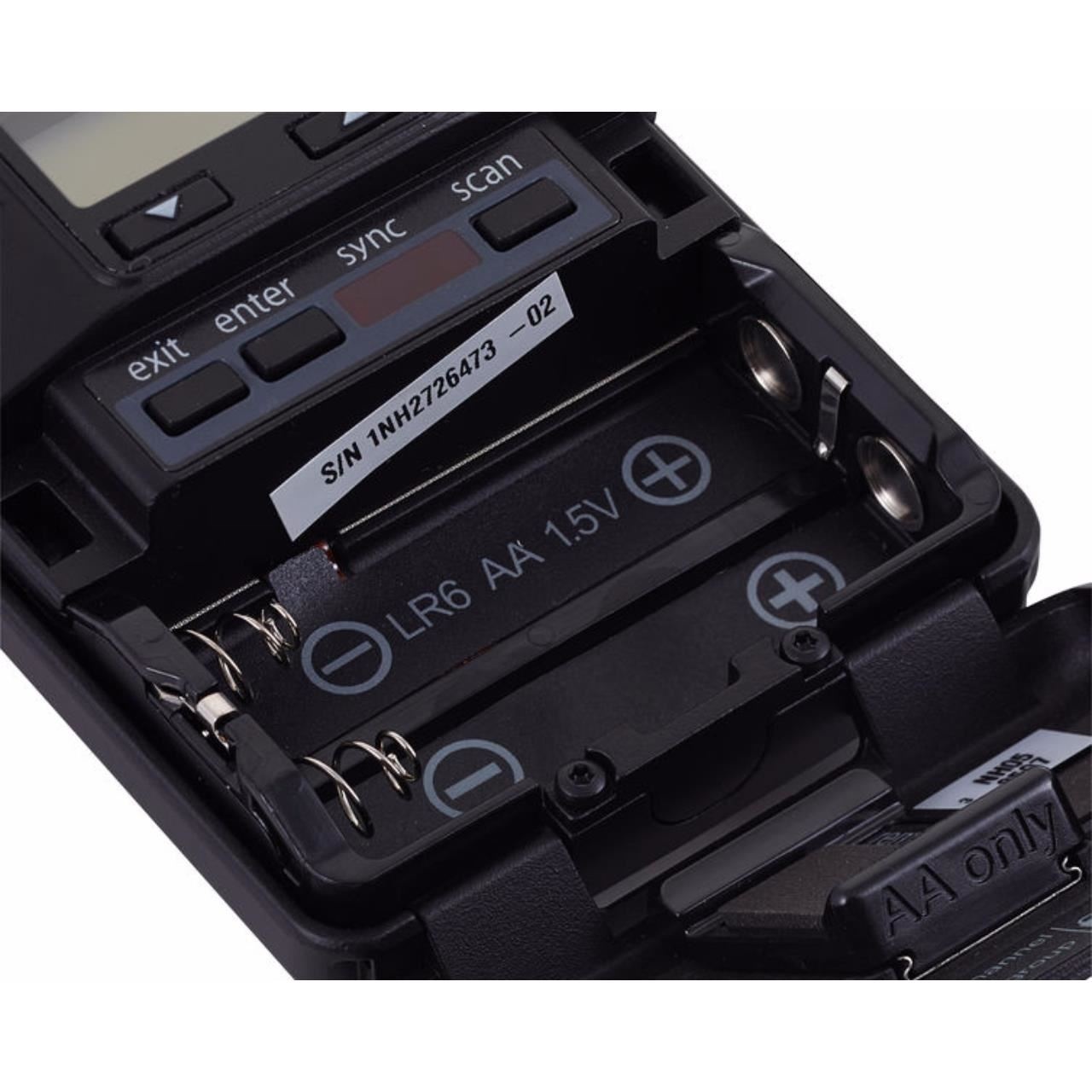

• Battery Life: 2 AA, 5-7 h
