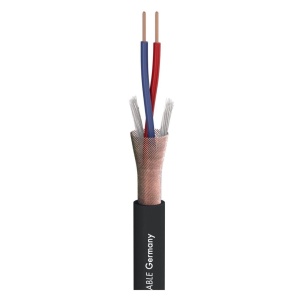

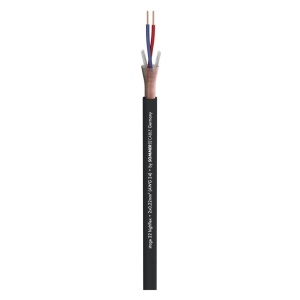

Description

Advantages:

• High transmission quality due to the use of fine stranding
• Very rugged owing to the thick, soft PVC jacket
• Good shielding due to dence helical copper mesh screen
• High flexibility makes it easy to reel
• Affordable price

Application:

• Stage application
• Home recording

Technical Data:

• Properties: Analog
• Properties: OFC oxygen free copper
• Application area: Stage / live
• Application area: Mobile outdoor / indoor
• Application area: Installation
• Application: Microphone Cable
• Colour: black
• Colour detailed: black
• Signal transmission: symmetrical
• Jacket material: PVC
• Jacket Ø: 6,4 mm
• Number of Channels (audio): 1
• Inner conductor (audio): 2
• Inner conductor (audio): 0,22 mm²
• Inner conductor Ø (audio): 0,53 mm
• AWG (audio): 24
• Shielding: Copper spiral shielding with 0.10 mm indiv. strands
• Copper strands (audio): 28
• Copper strand Ø (audio): 0,10 mm
• Weight per 1 m: 44 g
• UV-resistant: yes
• Fire load per m: 0,22 kWh
• Style variant: round
• Shielding factor: 99 %
• Packing: 100 m spool
• Packing: 500 m spool
• Temperature min.: -20 °C
• Temperature max.: 70 °C
• Width: 6,4 mm
• Height: 6,4 mm
• Capac. cond./cond. per 1 m (audio): 68 pF
• Capac. cond./shield. per 1 m (audio): 130 pF
• Impedance: 100 Ω
• Insulation resist. per 1 km: 1 GΩ
• Insulation resist. per 1 km (audio): 1 GΩ
• Conductor resistance per 1 km: 87 Ω
• Shield. resistance per 1 km: 30 Ω
