Descriere

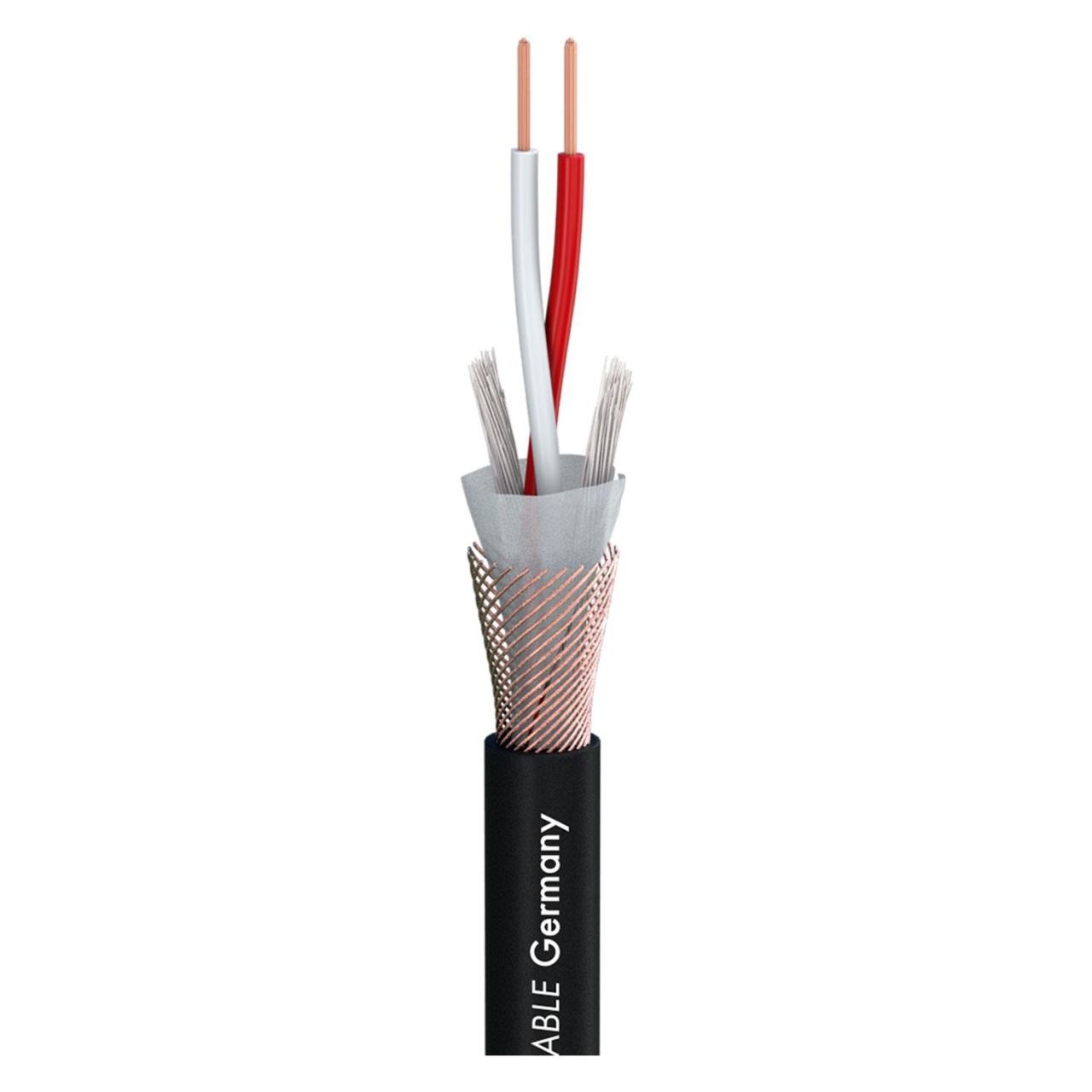

• Name Binary 234 AES/EBU MKII
• Properties OFC oxygen free copper
• Properties Analog
• Properties Digital 110 Ω AES / EBU
• Application area Studio / Broadcast
• Application area Mobile outdoor / indoor
• Application area ELA 100 V
• Application area Stage / live
• Application area Installation
• Application DMX
• Colour black
• Colour detailed black
• Signal transmission symmetrical
• Construction (2LI2Y0,34mm²)(ST)DY
• Jacket material PVC
• Jacket Ø [mm] 6,20
• Number of Channels (AES/EBU, DMX) 1
• Inner conductor (AES/EBU, DMX) 2
• Inner conductor (AES/EBU, DMX) [mm²] 0,34
• Inner conductor Ø (AES/EBU, DMX) [mm] 0,66
• AWG (AES/EBU, DMX) 22
• Shielding Copper spiral shielding + aluminum steamed fleece
• Shielding factor [%] 100
• Copper strands (AES/EBU, DMX) 19
• Copper strand Ø (AES/EBU, DMX) [mm] 0,15
• Conductor insulation material Foam / Skin-PE
• Conductor insulation Ø [mm] 1,50
• Weight per 1 m [g] 50
• UV-resistant yes
• Fire load per m [kWh] 0,17
• Style variant round
• Packing 100 m spool
• Temperature min. [°C] -25
• Temperature max. [°C] 70
• Width [mm] 6,2
• Height [mm] 6,2
• Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 63
• Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 19,2024
• Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 115
• Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 35,052
• Impedance [Ω] 110
• Insulation resist. per 1 km [GΩ] 1
• Insulation resist. per 1000 feet [GΩ] 0,3048
• Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 1
• Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0,3048
• Conductor resistance per 1 km [Ω] 53
• Conductor resistance per 1000 ft. [Ω] 16,1544
• Shield. resistance per 1 km [Ω] 28
• Shield. resistance per 1000 ft. [Ω] 8,5344
• BPVo-Euroclass Fca
