This cable can take a lot of tugging, bending, and rough wear and tear. This is important when installing it in sharp-edged lighting trusses.

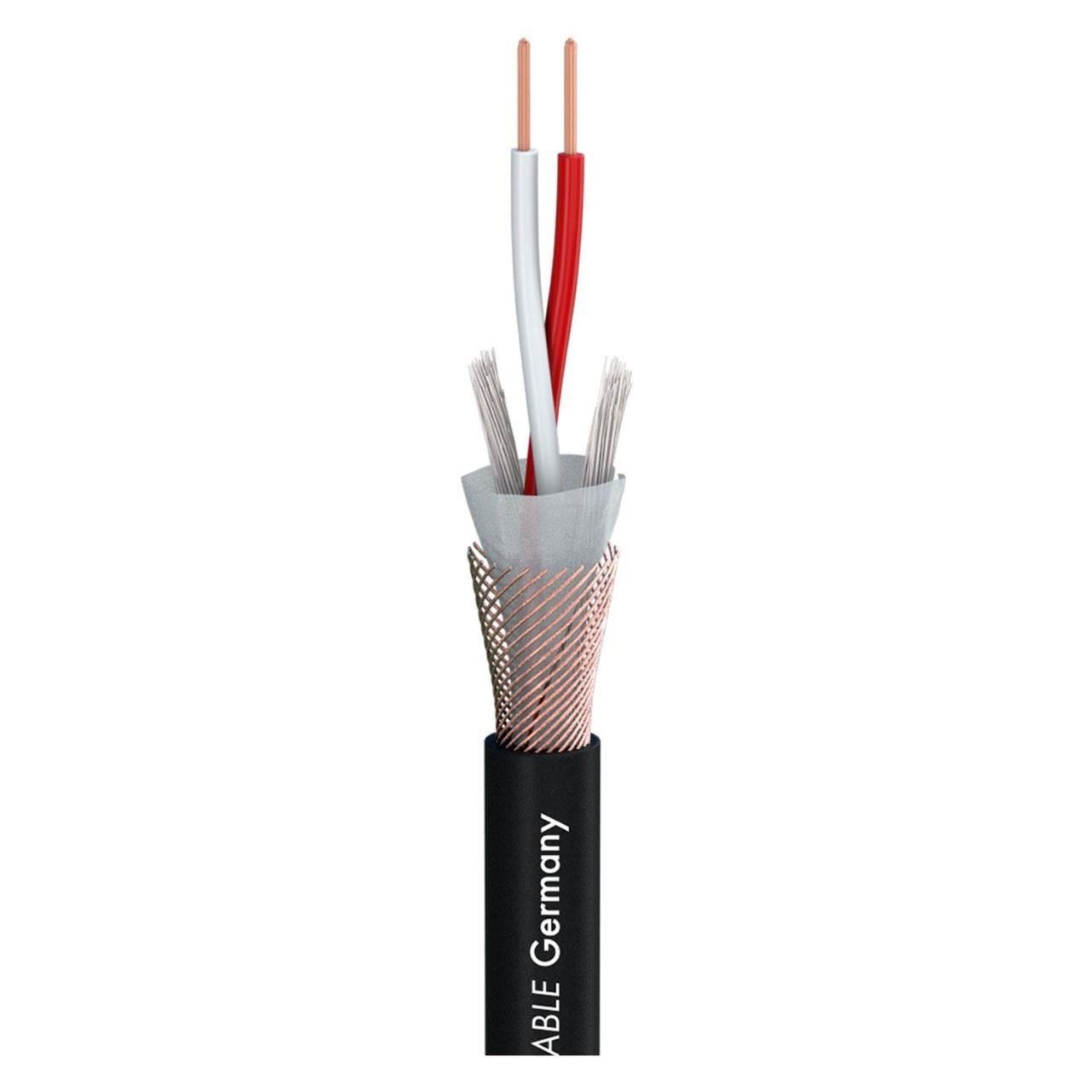

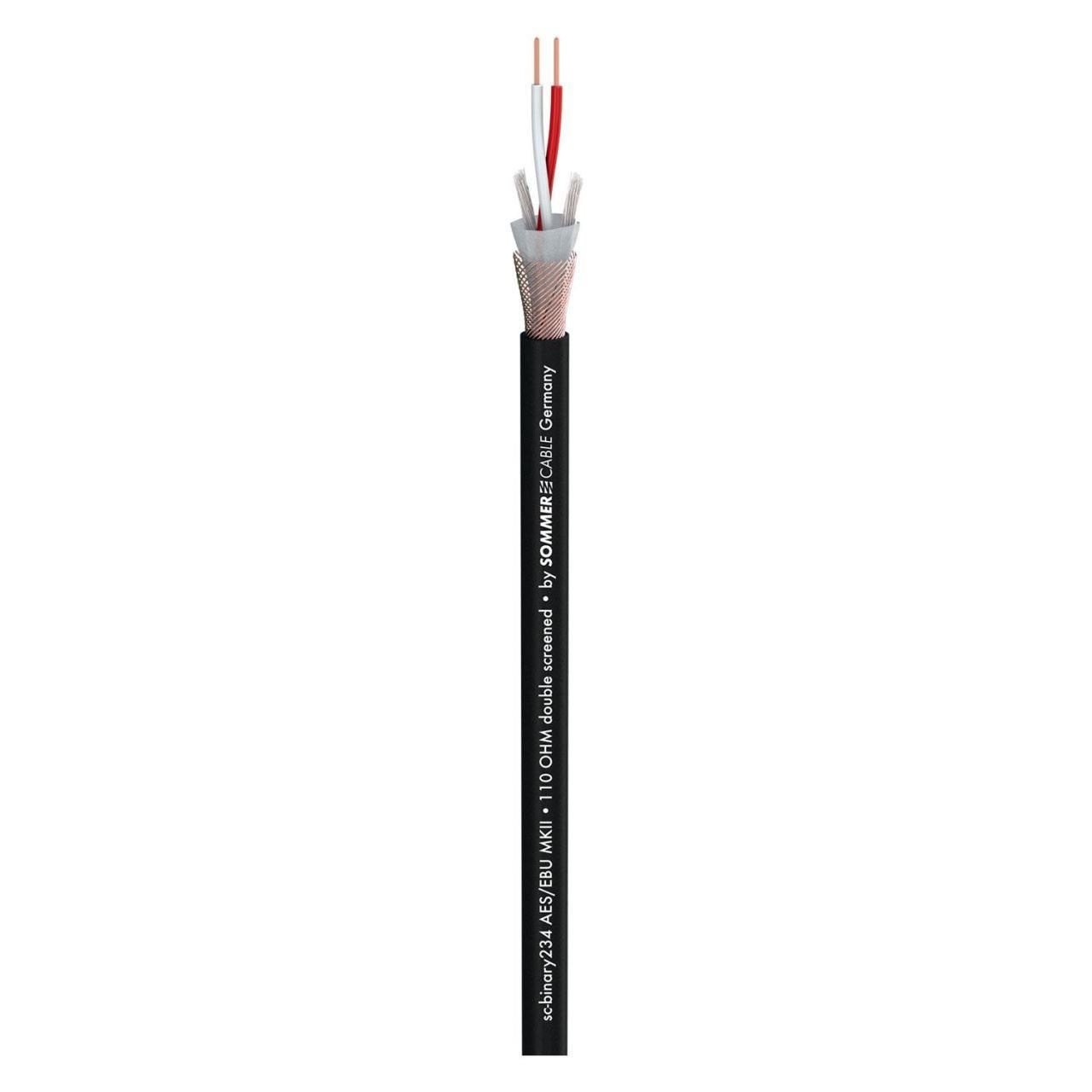

The Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110 Ω AES/EBU and DMX data format. Its shielding is provided by an aluminum-vaporised fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interferences. This cable ensures an error-free data transfer over distances of up to 1000 metres. With the Binary 234 AES/EBU MKII you’ll be on the safe side.

Advantages:

• AES/EBU- and DMX-conformant, highly flexible
• Very good shielding due to the use of a helical copper mesh screen plus
  an aluminium-vaporised fleece
• Extremely rugged due to the special tough jacket
• Only a little more expensive than a standard microphone cable

Application:

• Networking of scanners, lighting systems, digital mixing consoles etc.
• For indoor and outdoor installation
• Connection of digital audio amplifiers, DAT recorders etc.

Technical Data:

• Properties: OFC oxygen free copper
• Properties: Analog
• Properties: Digital 110 Ω AES / EBU
• Application area: ELA 100 V
• Application area: Mobile outdoor / indoor
• Application area: Installation
• Application area: Studio / Broadcast
• Application area: Stage / live
• Application: DMX
• Colour: black
• Colour detailed: black
• Signal transmission: symmetrical
• Jacket material: PVC
• Jacket Ø: 6,2 mm
• Number of Channels (AES/EBU, DMX): 1
• Inner conductor (AES/EBU, DMX): 2
• Inner conductor (AES/EBU, DMX): 0,34 mm²
• Inner conductor Ø (AES/EBU, DMX): 0,66 mm
• AWG (AES/EBU, DMX): 22
• Shielding: Copper spiral shielding + aluminum steamed fleece
• Copper strands (AES/EBU, DMX): 19
• Copper strand Ø (AES/EBU, DMX): 0,15 mm
• Conductor insulation material: Foam / Skin-PE
• Conductor insulation Ø: 1,5 mm
• Weight per 1 m: 50 g
• UV-resistant: yes
• Fire load per m: 0,17 kWh
• Style variant: round
• Shielding factor: 100 %
• Packing: 100 m spool
• Temperature min.: -25 °C
• Temperature max.: 70 °C
• Width: 6,2 mm
• Height: 6,2 mm
• Capac. cond./cond. per 1 m (AES/EBU, DMX): 63 pF
• Capac. cond./shield. per 1 m (AES/EBU, DMX): 115 pF
• Impedance: 110 Ω
• Insulation resist. per 1 km: 1 GΩ
• Insulation resist. per 1 km (AES/EBU, DMX): 1 GΩ
• Conductor resistance per 1 km: 53 Ω
• Shield. resistance per 1 km: 28 Ω
