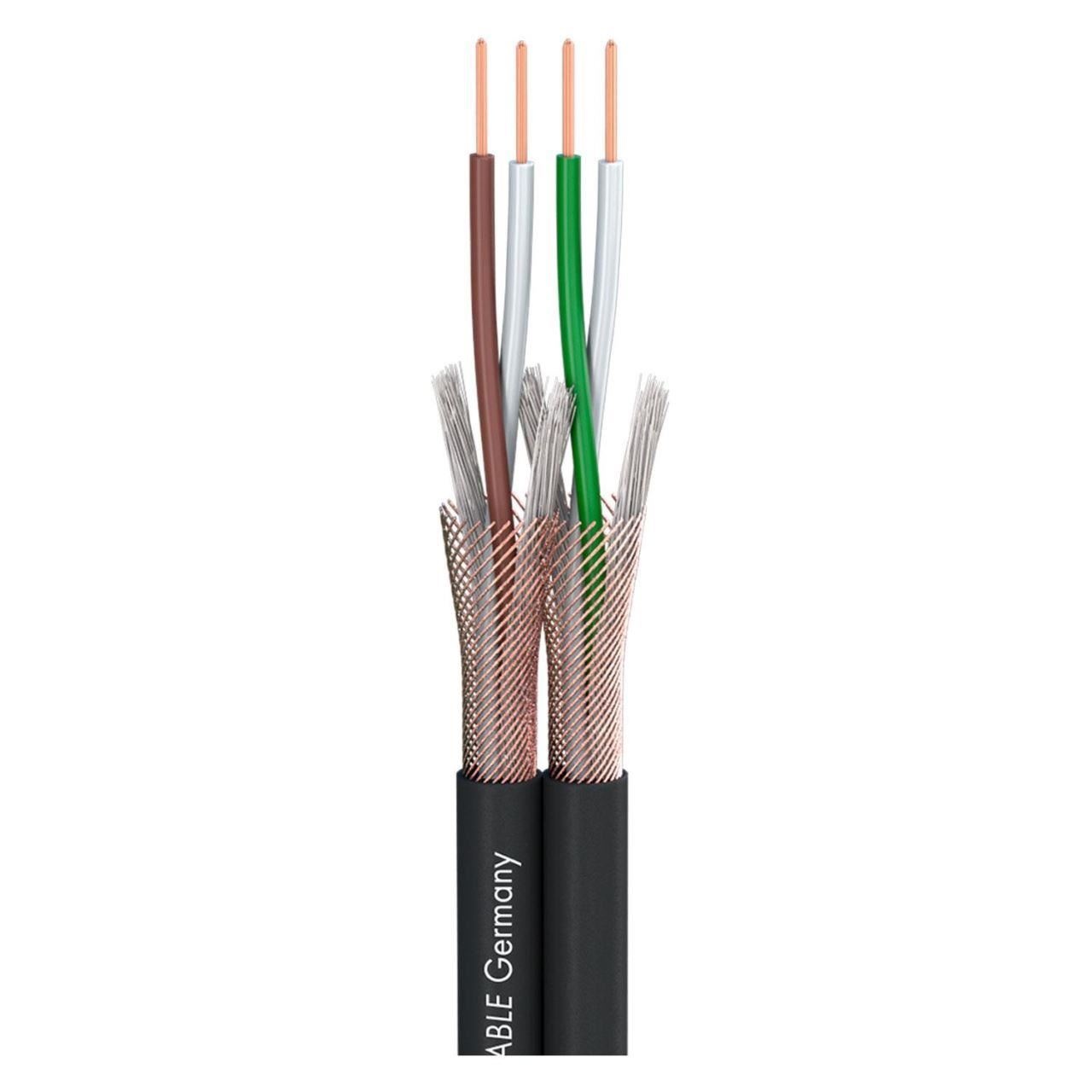

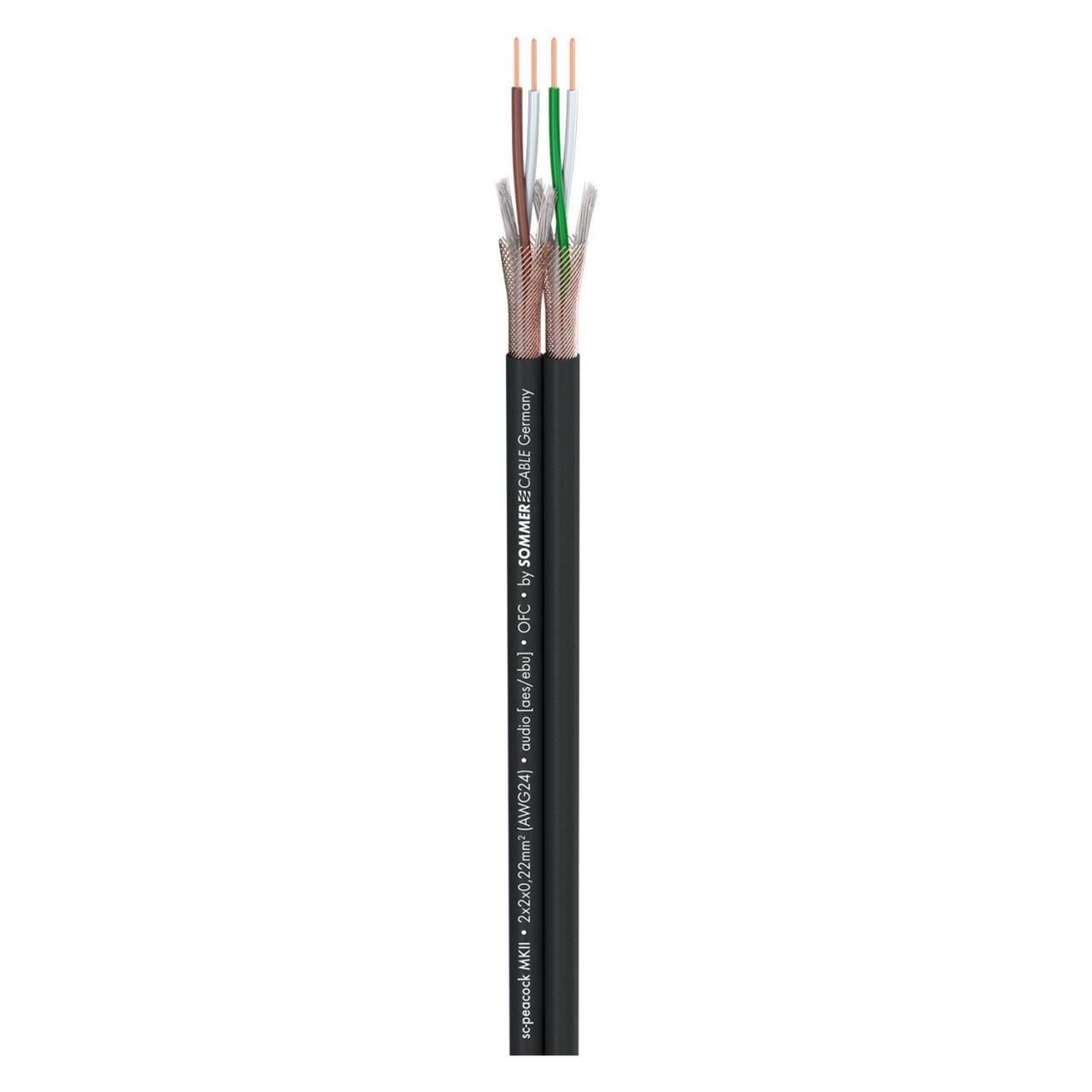

Or into three - or why not even four? You can do a lot with this cable. But primarily it will be used as a stereo cable for microphones and for manufacturing RCA and Y-patch cables. Each of its wire pairs is protected individually by a tight helical shielding with 95 % coverage and can be separated anytime. The single line will fit into every jack, XLR, and RCA connector.

Advantages:

• Highly flexible due to the use of a cold-resistant and soft PVC jacket
• Multiple applications, as the individual wires can be separated anytime

Application:

• Wiring of stereo microphones
• Assembly of insert cable

Technical Data:

• Properties: Digital 110 Ω AES / EBU
• Properties: OFC oxygen free copper
• Properties: Analog
• Application area: Installation
• Application area: Studio / Broadcast
• Application area: Stage / live
• Application: Patch & Microphone Cable
• Colour: black
• Colour detailed: black
• Signal transmission: symmetrical
• Jacket material: S-PVC
• Number of Channels (AES/EBU, DMX): 2
• Inner conductor (AES/EBU, DMX): 2
• Inner conductor (AES/EBU, DMX): 0,22 mm²
• Inner conductor Ø (AES/EBU, DMX): 0,53 mm
• AWG (AES/EBU, DMX): 24
• Shielding: Copper spiral sleeve
• Copper strands (AES/EBU, DMX): 28
• Copper strand Ø (AES/EBU, DMX): 0,10 mm
• Conductor insulation material: Foam / Skin-PE
• Conductor insulation Ø: 1,3 mm
• Weight per 1 m: 49 g
• UV-resistant: yes
• Fire load per m: 0,18 kWh
• Style variant: twin
• Shielding factor: 95 %
• Packing: 100 m spool
• Temperature min.: -30 °C
• Temperature max.: 70 °C
• Width: 9,2 mm
• Height: 4,5 mm
• Capac. cond./cond. per 1 m (AES/EBU, DMX): 70 pF
• Capac. cond./shield. per 1 m (AES/EBU, DMX): 125 pF
• Impedance: 110 Ω
• Insulation resist. per 1 km: 0,5 GΩ
• Insulation resist. per 1 km (AES/EBU, DMX): 0,5 GΩ
• Conductor resistance per 1 km: 90 Ω
• Shield. resistance per 1 km: 36 Ω
