Descriere

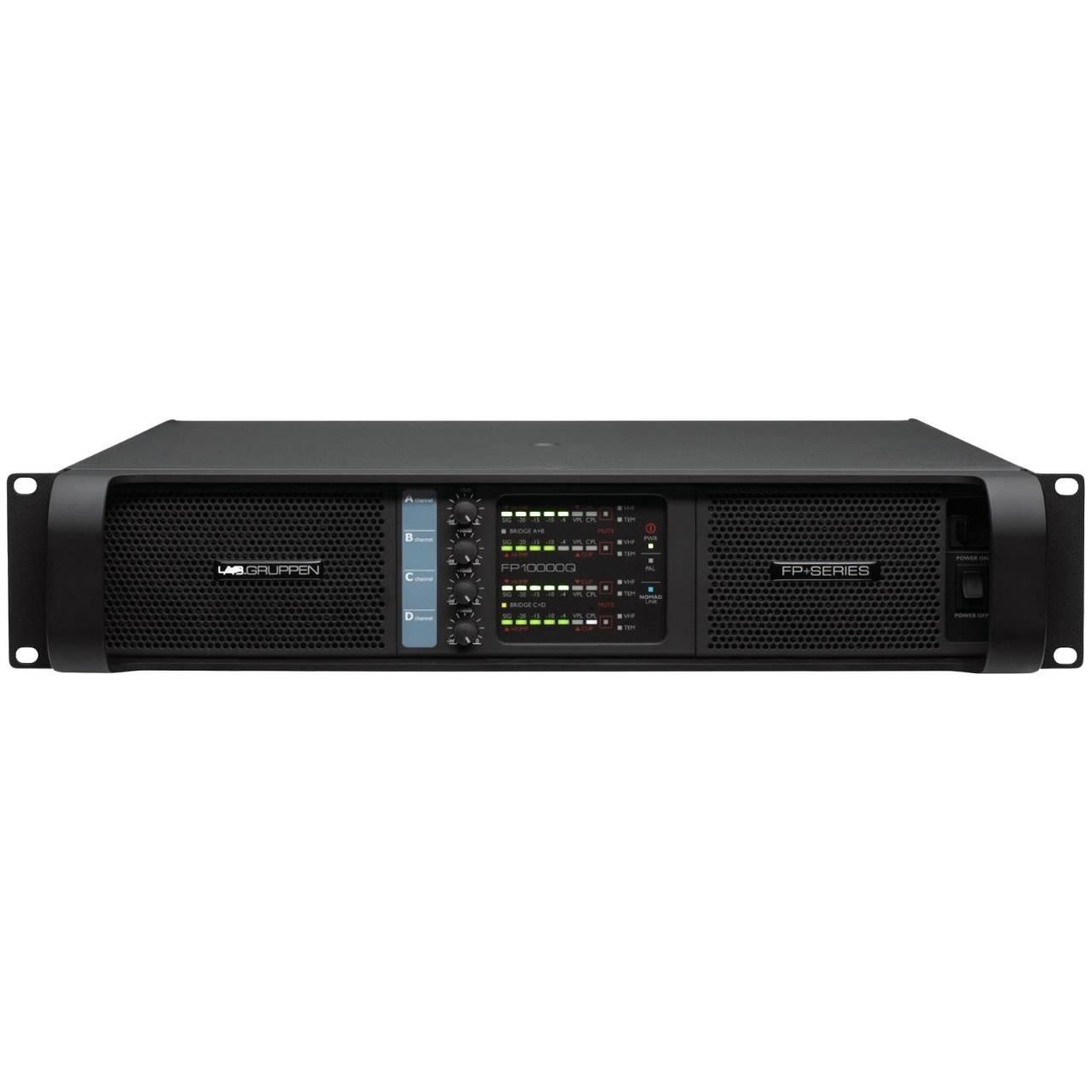

The FP 10000Q is the flagship four-channel model in the FP + Series. At the core of the FP 10000Q’s performance is the now proven technological milestone that is Lab.gruppen’s patented Class TD® output stage, an amplifier topology that approaches the exceptional efficiency of Class D while retaining the sonic purity of proven Class B designs. Further contributing to the remarkable efficiency of the FP 10000Q is a Regulated Switch Mode Power Supply (R.SMPS ™), which gives the added benefit of stabilizing rail voltages to the output even with wide fluctuations of mains voltage. A highly refined and updated circuit layout optimizes the interaction of R.SMPS and Class TD to produce the extraordinary power density of the FP 10000Q.

Characteristics:

Very high power and channel density - The four-channel FP10000Q delivers a total of 10000 W (4 x 2500 W @ 2 ohms) in only 2U
Four-channel flexibility - Adjacent channels bridgeable for 2- or 3-channel operation
Lab.gruppen sound quality - impeccable sonic performance standards with durability and greater efficiency
NomadLink® network ready - Monitoring and control of key functions accessible via the intuitive DeviceControl software
Patented Class TD amplifier topology - Road-proven output stage delivers Class B audio quality with Class D efficiency
Regulated Switch Mode Power Supply (R.SMPS) - Output power remains constant even with significant drops in the mains voltage
Efficient cooling system - Unique, lightweight Intercoller copper cooling system dissipates more heat to allow extended peak output
Adjustable parameters - Selectable Gain, scalable Voltage Peak Limiter (VPL), and bridge-mode operation allow custom configuration for any application
Comprehensive protection and warning - Excessive output current, DC, high temperature, very high frequency (VHF), short circuit, open load, mains fuse protection, and soft start

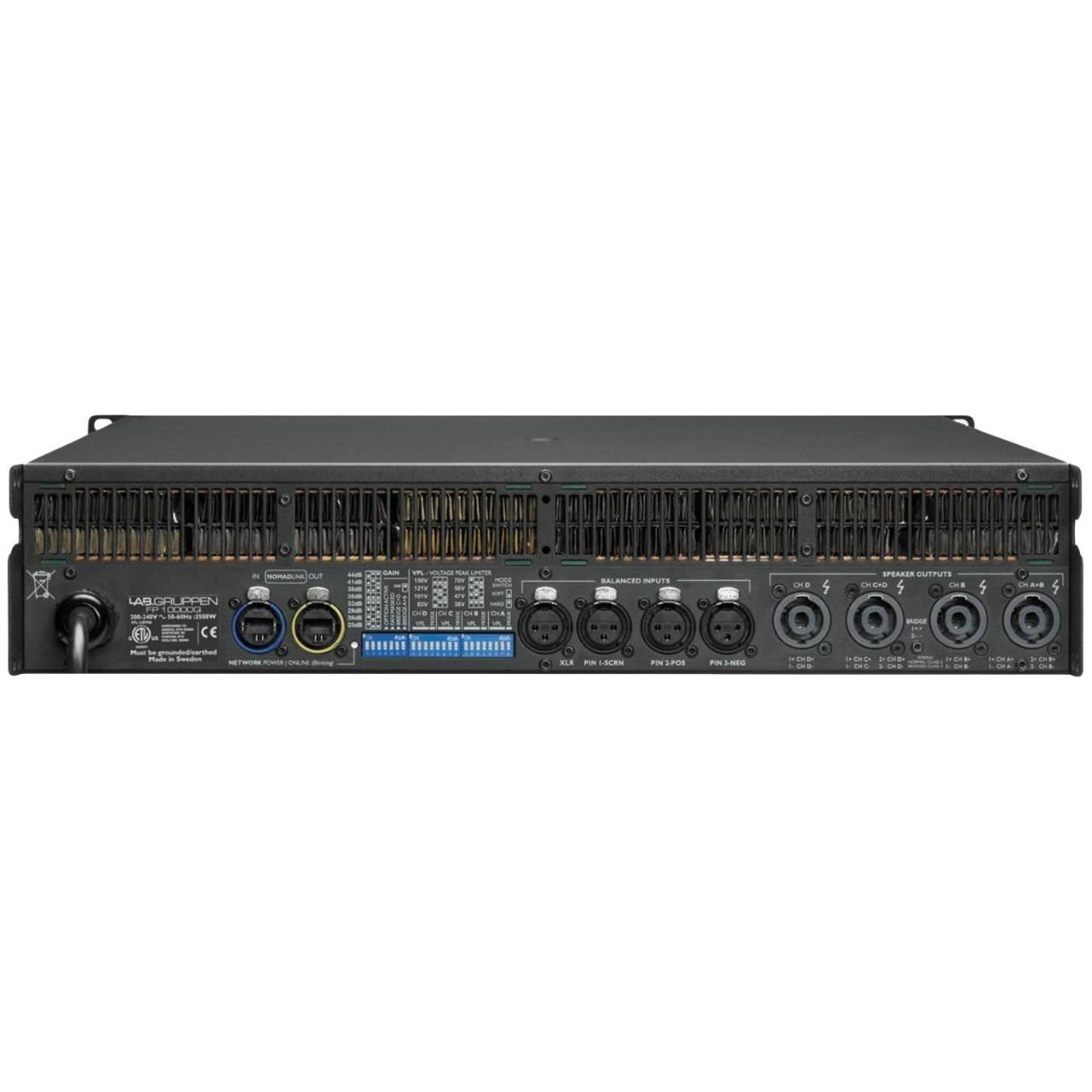

XLR input connectors
Heavy-duty binding post or Speakon output connectors


Specifications:

Amplifier channels: 4
Output power: 4 x 660W / 16 ohms, 4 x 1300W / 8 ohms, 4 x 2100 W / 4 ohms, 4 x 2400W / 2 ohms
Bridged power: 2600W / 16 ohms, 4200W / 8ohms, 5000W / 4 ohms
Output bridge mode: A + B - Ch. A is signal input source. A + B, C + D - Ch.’s A and C are input source
Connectors: Speak-on, XLR
Cooling: Dual fan, front to rear airflow, no filter required, temperature controlled speed
Dimensions: 483 mm x 88 mm x 396 mm
Weight: 12 kg
